Big Sur Ivory White | Big Sur: a 26" x 4" fat tire e-bike with 750W motor, safe with big headlight, rotor & battery. Comfortable with 52T crankset & AIMA saddle.

Big Sur Ivory White | Big Sur: a 26" x 4" fat tire e-bike with 750W motor, safe with big headlight, rotor & battery. Comfortable with 52T crankset & AIMA saddle.

SKU:

1000 in stock

Regular price $1,799.00
Regular price $1,999.00 Sale price $1,799.00
Sale Sold out
Tax included.

Big Sur is a 26” x 4” fat tire e-bike with 750W powerful Bafang motor designed for all terrains. As a class2/3 e-bike, its speed can go up to 20mph on throttle mode and 28 mph on PAS mode. And specially-designed big headlight and big rotor along with LG 21700 big battery cells make Big Sur one of the safest e-bikes. Besides, equipped with 52T big crankset and AIMA Comfort big saddle, Big Sur provides riders with remarkably comfortable and smooth riding experience.

Model

Big Sur



MOTOR

750W (Rated), 48V Brushless Rear Hub Motor

THROTTLE

Throttle on demand

DISPLAY

LCD Smart Easy Read Display with Backlight, Colorful screen

SPEED

Up to 28 MPH on the Pedal Assist

BATTERY

Removable Internal Lithium-ion 48V, 15Ah (720Wh) with LG cells

SENSORS

Torque Sensor

PEDAL ASSIST

5 Levels

CHARGER

48V 3 Amp Fast Charger, about 5 Hours Charging

RANGE

Up to 60 Miles

FRAME

6061 Single-Butted Aluminum Alloy Frame with Internal Battery

WEIGHT

82 lbs. ( Battery included)

PEDALS

9/16' Alloy Platform

FORK

Suspension Fork with 80mm travel, with lockout

WEIGHT LIMIT

400 lbs.

KICKSTAND

Included, Aluminum Alloy Kickstand

CRANKSET

170mm w/ 52 T

SHIFT

Shimano 8 Speed

BRAKES

Hydraulic Disc Brakes

ROTOR

203 mm

CHAIN

130 Link, 8 Speed

RIM

Double Wall Aluminum Alloy

SPOKES

Black Stainless 12G Front / 12G Rear

TUBES

Butyl Rubber

HUBS

Front Aluminum Alloy Disc Hub

TIRES

26" x 4" Puncture Resistant

SADDLE

AIMA Comfort, 280mm*270mm saddle

SEATPOST

Aluminum Alloy, 30.4mm 2-Bolt Clamp

STEM

Threadless, 31.8mm, 7 Degree Rise, Ext 75mm

SEAT CLAMP

34.9 mm Quick Release

HANDLEBARS

Aluminum Alloy Double Wall, 31.8mm, 680mm

HEADSET

Sealed Bearing Headset

GRIPS

Ergonomic Comfort

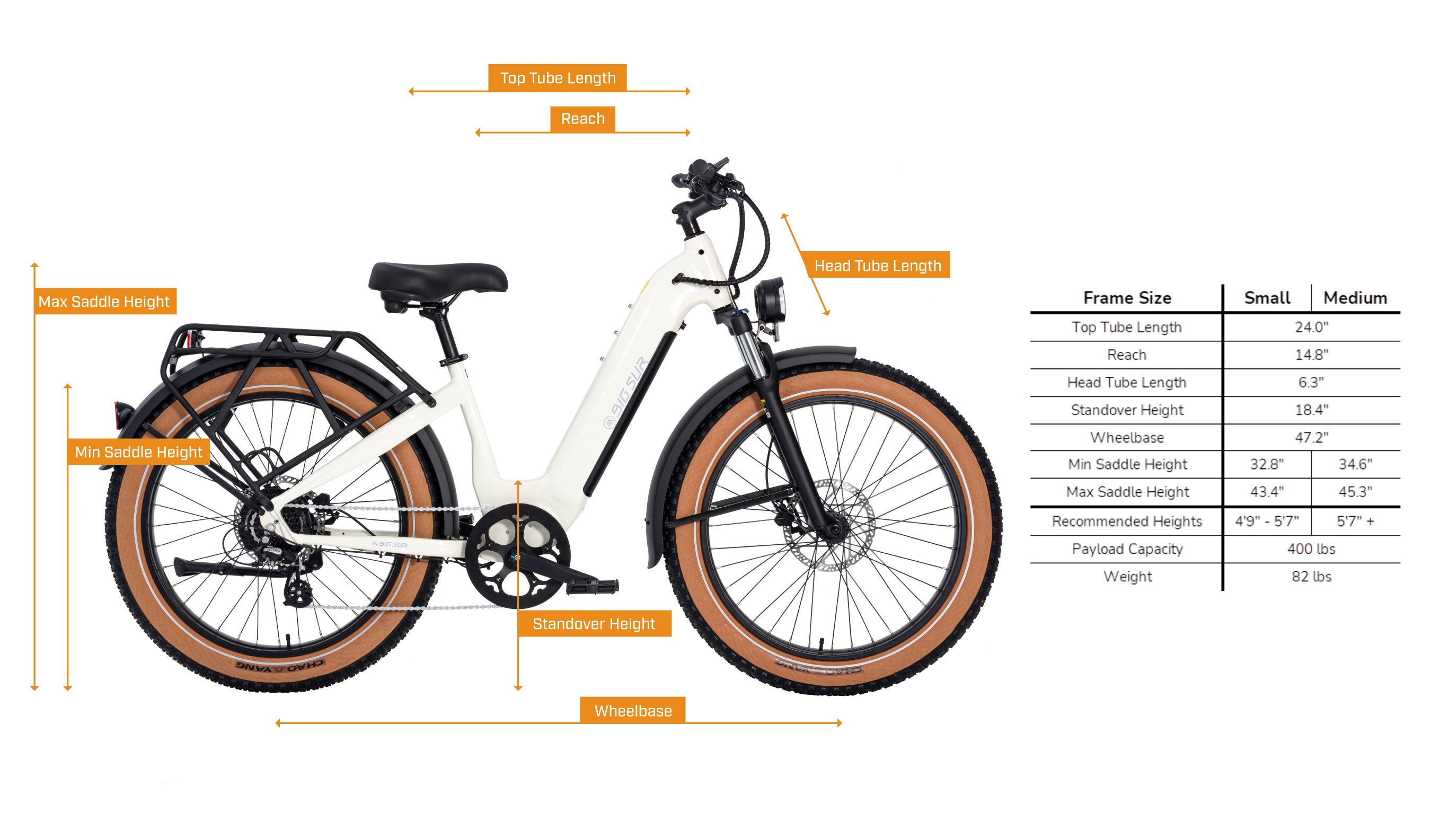

Geometry and Fit

Features and Details

Features

Hub Motor and Battery

The powerful 750W rear hub motor with a 48V15Ah high-capacity integrated battery will take you to those far-to-reach places and discover more of what’s out there.

Torque Sensor

The torque sensor is the next-generation transmission technology that recognizes your pedaling effort, meets you where you’re at, and amplifies your output, conserving battery life and extending riding range.

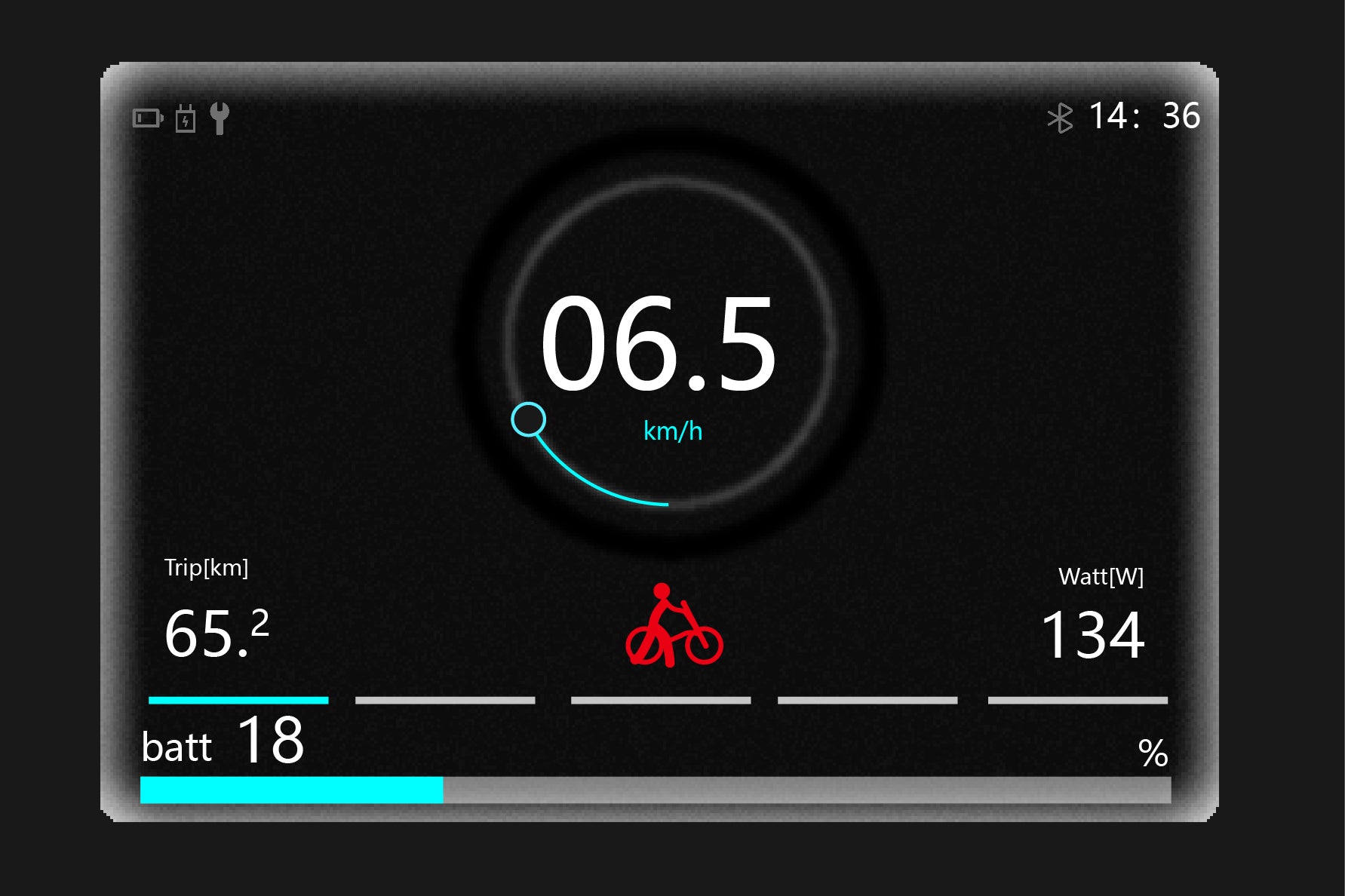

Full Color Backlit LCD Display

The Full Color Display gives all the important metrics you need, including speed, distance traveled, pedal assist level, and more.

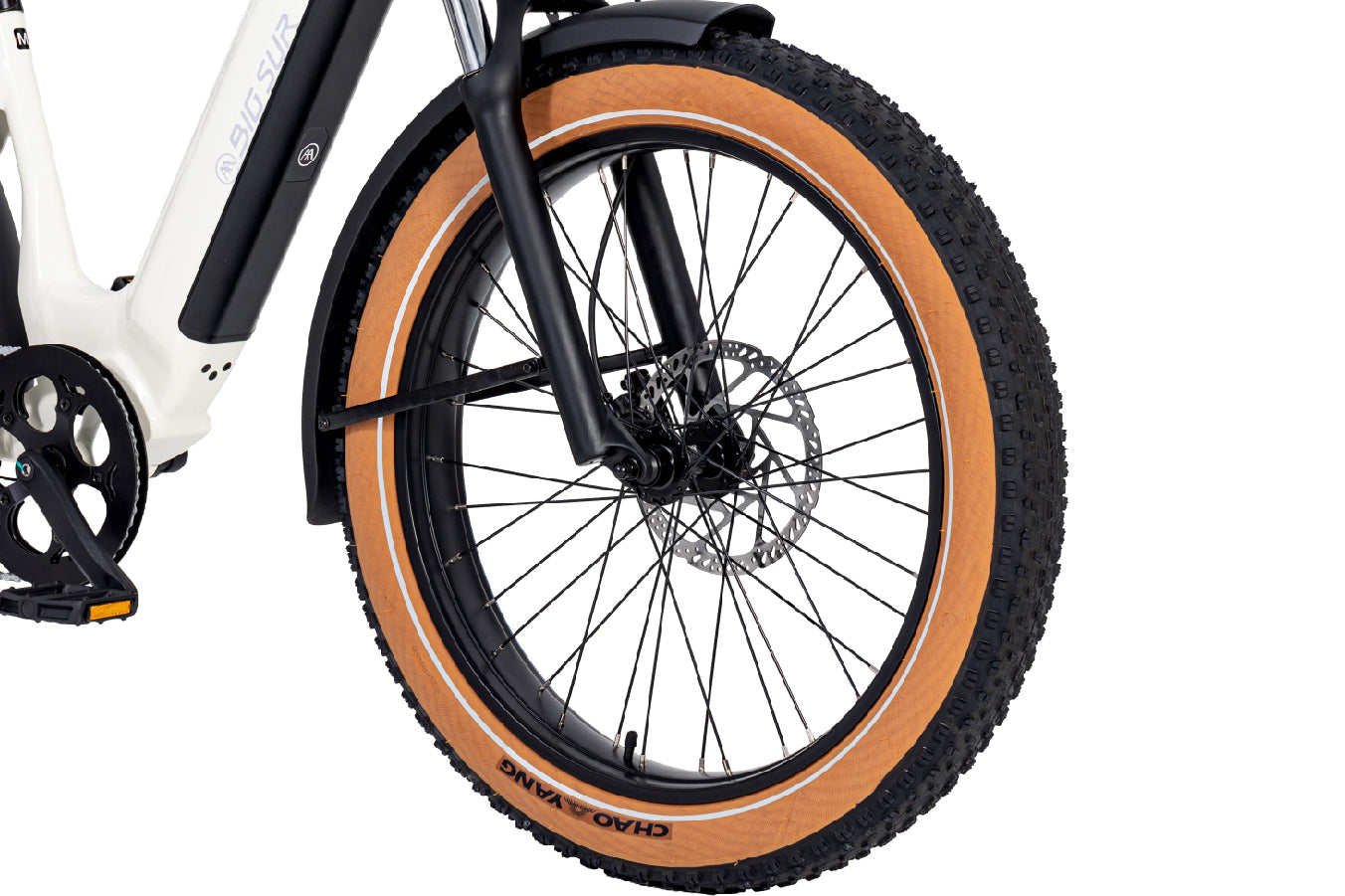

26” x 4” Fat Tire

26” x 4’’ means wherever there’s adventure, our Big Sur will find it

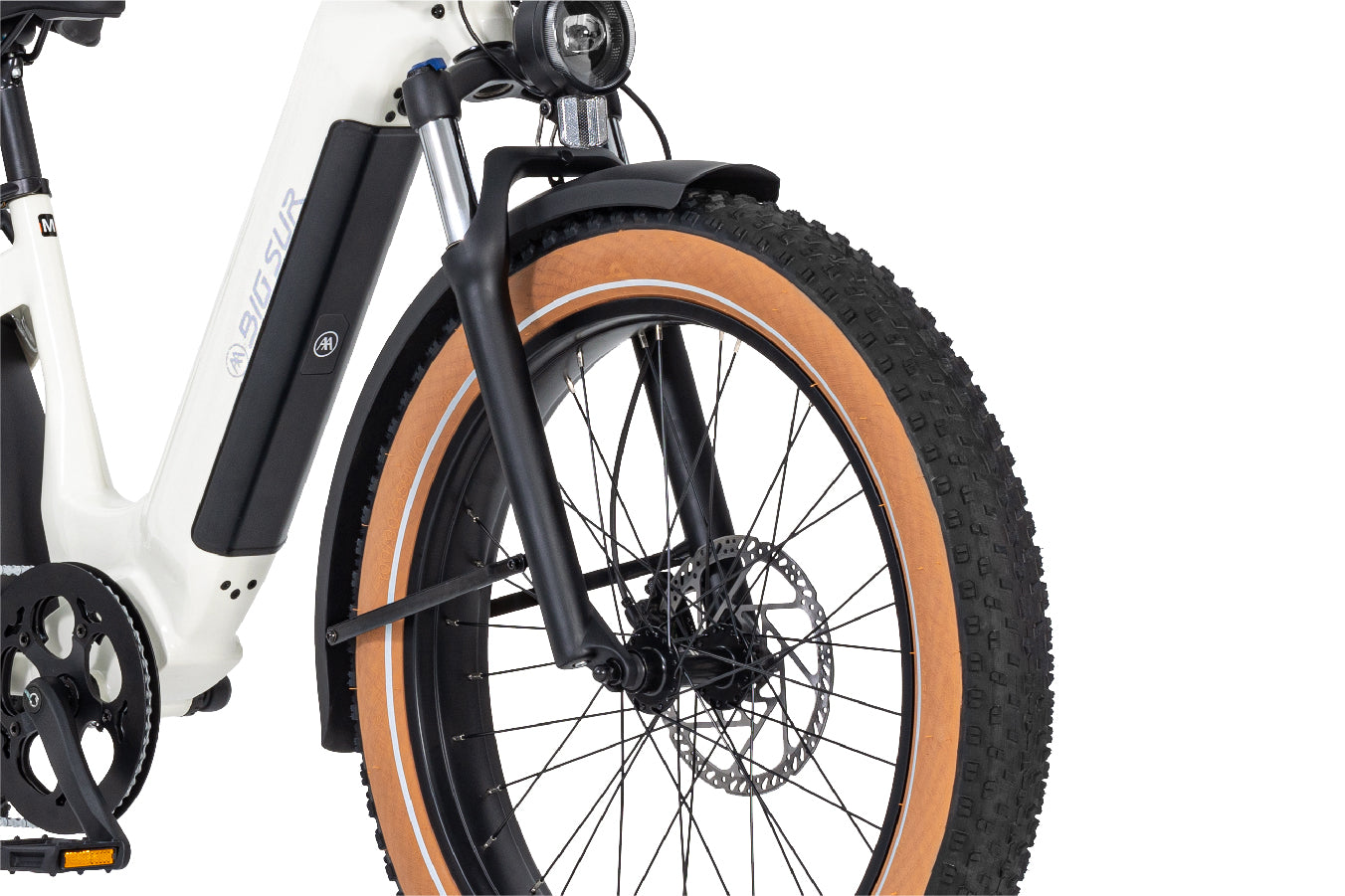

Suspension Fork

A suspension fork with up to 80mm of travel means there’s plenty of room for comfort off the beaten path.

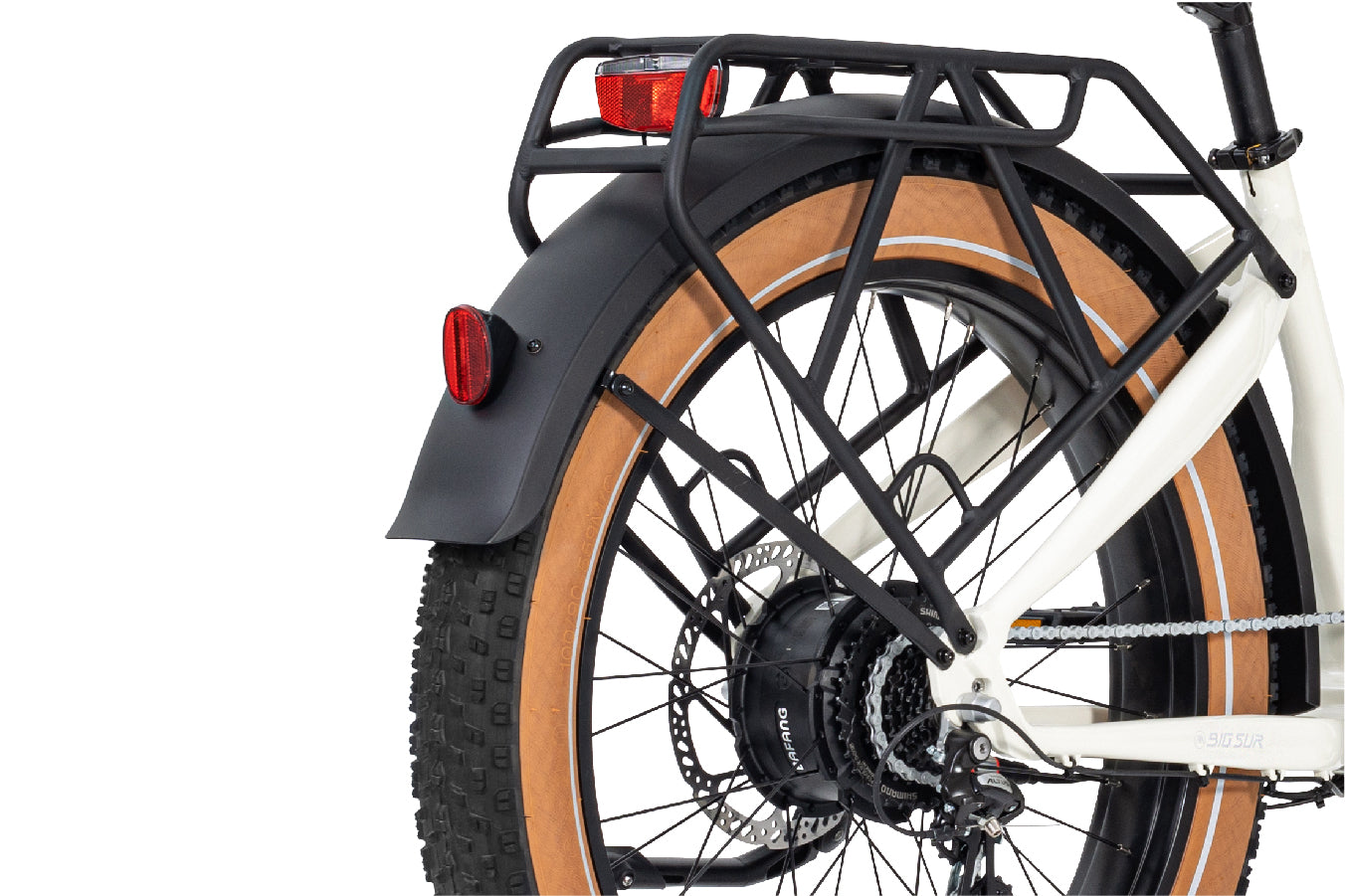

Fender & Rear Rack

Pre-installed fenders will keep you protected on those rugged routes, in any weather, while an included rear rack means you can carry all that you need wherever the road takes you.

Flat Position Welding

The most advanced aluminum frame exclusive welding process is applied to do flat position welding on the whole bike frame, so that the surface of the frame is not only strong and durable, but also smooth and flat.

Walk Assist

The built-in walk assist function makes it possible to obtain electric power assist even when propelling the e-bike on foot. It further improves the comfort of e-bike in various usage scenarios.

Controller Compartment

The specially designed controller compartment makes the wiring of the electronic control system in the e-bike body more systematic, and at the same time enhances the heat dissipation, ensuring a safer riding on the next level.
